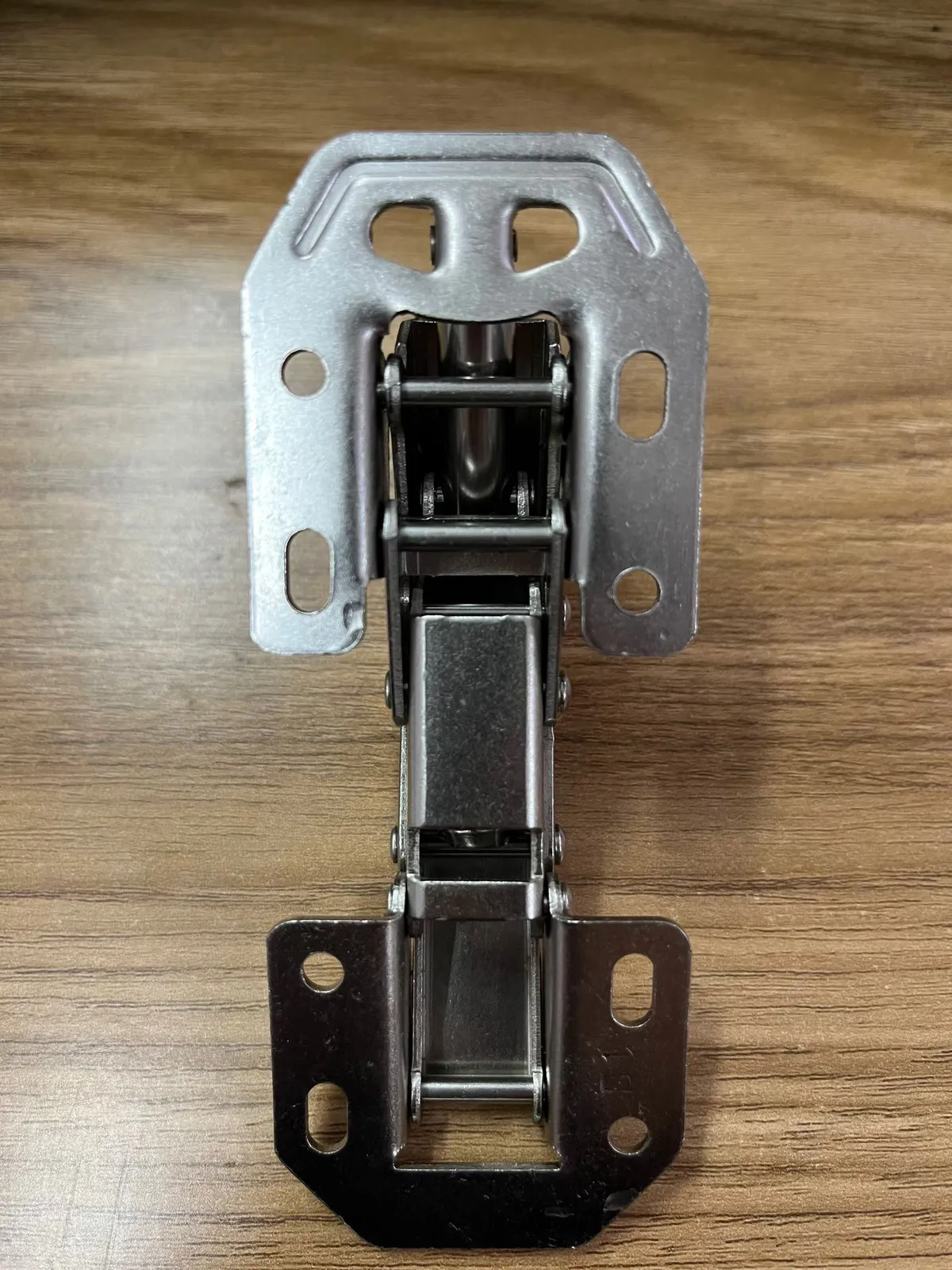

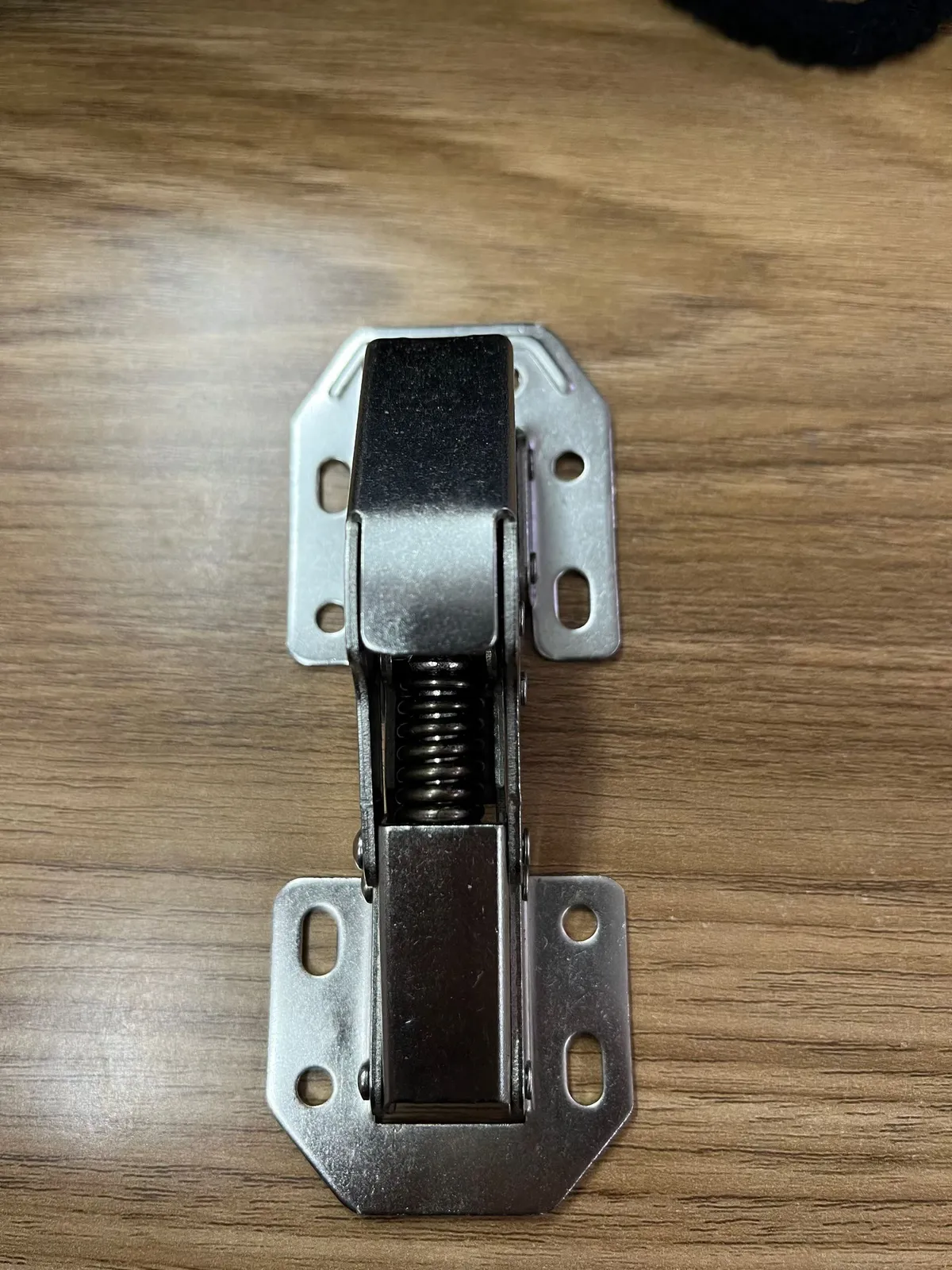

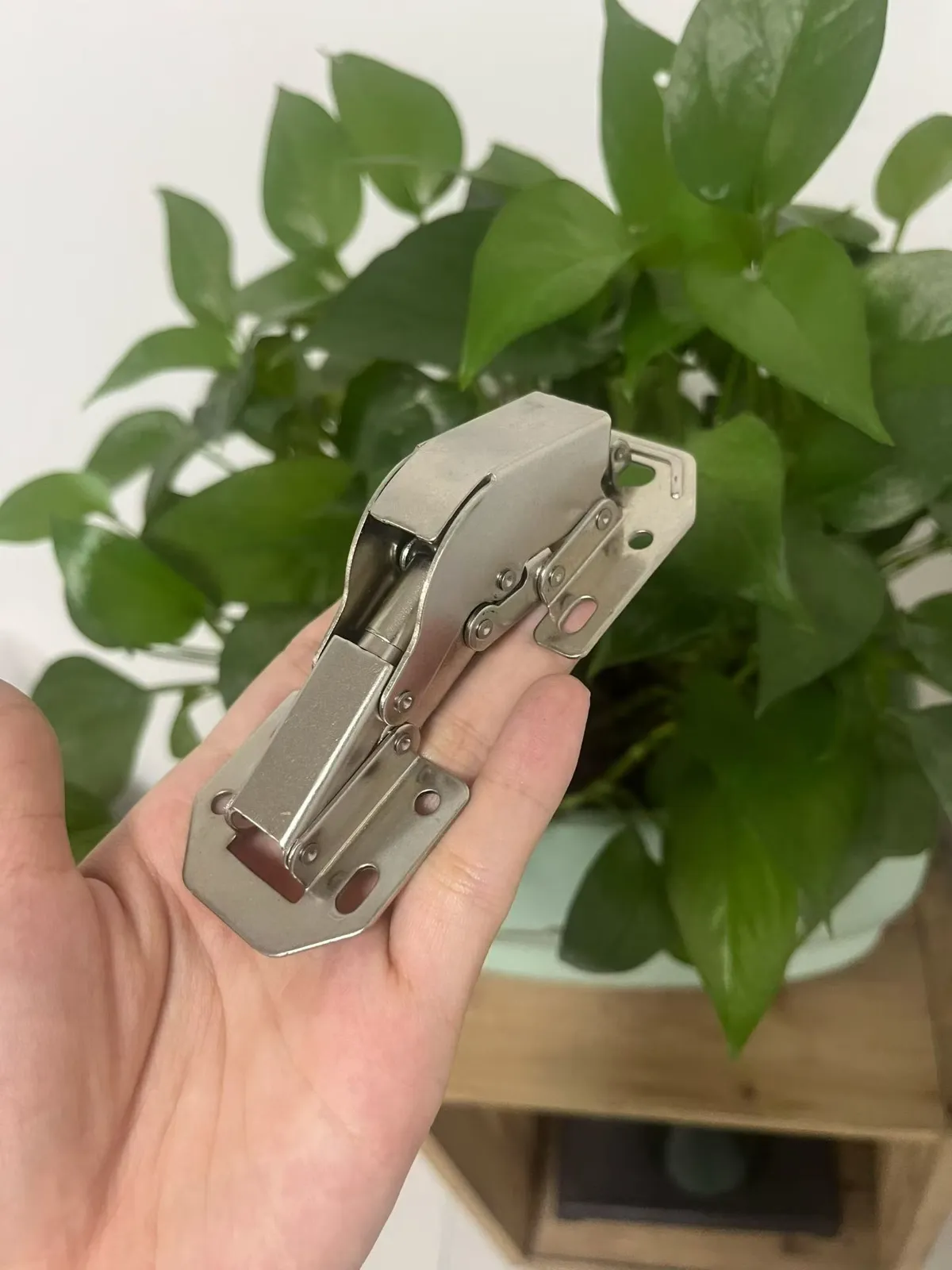

SKY-FH01 Frog Hinge No-Drill Clip-On Wide-Angle Hinge 3"-5"
SKY-FH01
SKY-FH01 Frog Hinge No-Drill Clip-On Wide-Angle Hinge 3"-5" — 3" (75 mm) / 4" (100 mm) / 5" (125 mm) no-drill clip-on frog hinge, 130°–170° adjustable opening, stainless steel 304 with nickel plating. Factory-direct OEM hinge from Fuzhou & Foshan, Guangdong, China.
ISO 9001:2015 · CE · RoHS · REACH · DIN · 48h Salt Spray
Specifications
| Material | Stainless steel 304 |
|---|---|
| Finish | nickel plating |
| Size | 3" (75 mm) / 4" (100 mm) / 5" (125 mm) |
| Opening angle | 130°–170° |
| Mounting | No-drill clip-on (tool-free) |
| Panel thickness | 18–40 mm panels |
| Application | Kitchens, wardrobes, bathroom & office cabinets |
| MOQ | 100 pcs |
| Packing | 200 pcs / export carton |
Key Features
- No-drill clip-on installation — fits the door edge in seconds, no screws and no 35 mm cup drilling
- Adjustable 130°–170° opening angle — fine-tune the door opening with the arm screws during installation
- Universal full-overlay, half-overlay and inset mounting — one hinge covers three cabinet styles with a switchable base
- Optional hydraulic soft-close damper — slow, quiet closing without slamming; non-buffered version available
- Fits 18–40 mm cabinet panels and doors; available in 3" (75 mm), 4" (100 mm) and 5" (125 mm) lengths
Related Products
SKY-H001 Concealed Pivot Cabinet Hinge
SKY-H001 Concealed Pivot Cabinet Hinge — 90° opening angle, 35 mm European cup, cold-rolled steel with nickel plating. Factory-direct OEM hinge from Fuzhou & Foshan, Guangdong, China.
SKY-H002 Concealed Cabinet Hinge
SKY-H002 Concealed Cabinet Hinge — 100° opening angle, 35 mm European cup, cold-rolled steel with nickel plating. Factory-direct OEM hinge from Fuzhou & Foshan, Guangdong, China.
SKY-H003 Stainless Steel Hinge
SKY-H003 Stainless Steel Hinge — 110° opening angle, 35 mm European cup, stainless steel 304 with brushed finish. Factory-direct OEM hinge from Fuzhou & Foshan, Guangdong, China.
Frequently Asked Questions
Yes. The clip-on frog hinge grips the door edge directly, so no 35 mm cup hole and no screws are needed. It also speeds up production-line assembly and makes doors easy to remove for transport or service.
